Jeep CJ5 Repli-Tub

Steel Body Replacement for CJ5 Jeeps

CJ5: The Iconic Longest-Running Jeep Model

The CJ5 was the longest-running version of the CJ, with production spanning from 1955 to 1983. Over the years, the CJ5 evolved to keep up with the times. The early models shared much of their driveline with their flat-fender predecessors, but continuous improvements were made throughout its lifespan. Engine options varied by year and included the legendary F-134 “Hurricane” Willys engine, a Perkins diesel, and the Buick 225 “Dauntless” V6. After 1971, these were replaced by the AMC 232 and 258 inline-six engines, the AMC 304 V8, and the GM “Iron Duke” four-cylinder. Transmission and transfer case options were equally extensive. Thanks to its long production run, the CJ5 is often the first image that comes to mind when people think of a classic Jeep. At Willys-Overland Motors, we offer high-quality, user-friendly body tubs for every CJ5 model, tailored to match your Jeep’s original specifications.

Reserve Your CJ5

Willys-Overland: Making Your CJ5 Tub an Easy Install

Precision Modifications for a Seamless Fit

We expertly refine the Jeep CJ5 body to ensure a hassle-free installation, making it a perfect fit for your restoration project. Our team meticulously modifies each replacement body to fit directly onto your original chassis, eliminating the common issues that come with aftermarket body replacements. We focus on the details, ensuring that every adjustment enhances the overall fit and durability of your Jeep tub.

Our Modifications and Key Enhancements

We offer the CJ-5 Repli-Tub in four variations, each designed to match factory specifications for seamless installation and durability. Our modifications include:

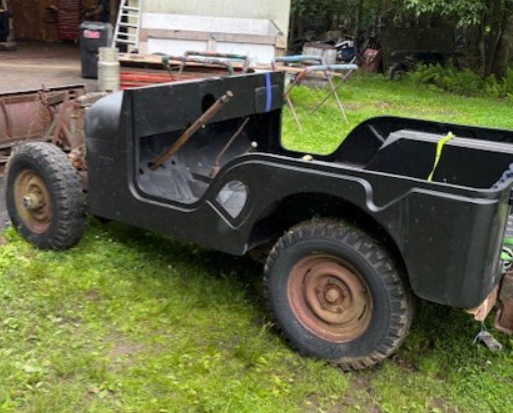

1955-1970 CJ5 (Side Fuel Fill)

Pre-cut floor holes for gas, clutch, and brake pedals.
Steering column hole and high beam switch hole installed for proper alignment.
Fuel system openings pre-cut, including fuel fill hole, fuel tank line, and drain.
Pre-cut transmission and transfer case shifter holes for accurate fitment.
Corrected firewall with factory-style holes for easy installation.
Straightened lips on the bottom of the tub for a factory-correct appearance.
Pre-installed rear taillight wiring holes with optional reverse light holes.
All body mounting holes drilled with welded crush sleeves to prevent bolt loosening.

1970-1971 CJ5 (Rear Fuel Fill)

Pre-cut floor holes for gas, clutch, and brake pedals.
Steering column and high beam switch holes installed for precise alignment.
Correctly positioned transmission and transfer case shifter holes for seamless installation.
Round fuel fill hole cut in the rear, as per original specifications.
Factory-positioned taillight and reverse light wiring holes pre-installed.
Straightened lips on the bottom of the tub for a factory-correct appearance.
Corrected firewall with all necessary openings for proper fitment.
Body mounting holes drilled with welded crush sleeves for secure attachment.

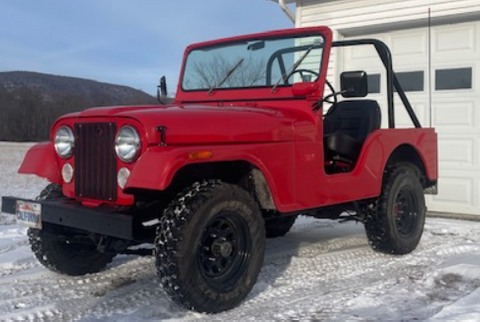

1972-1975 CJ5

Fully pre-cut dash with all necessary holes.
Rear fuel fill hole cut to factory specs for easy installation.
Pre-installed taillight and wiring holes, including reverse light wiring holes.
Firewall updated with either round or square wire harness pass-through.
Corrected firewall openings to match original specifications.
Straightened lips on the bottom of the tub for a factory-correct appearance.
All body mounting holes drilled with welded crush sleeves for added security.
Hat channel fix implemented to ensure proper alignment and long-term durability.

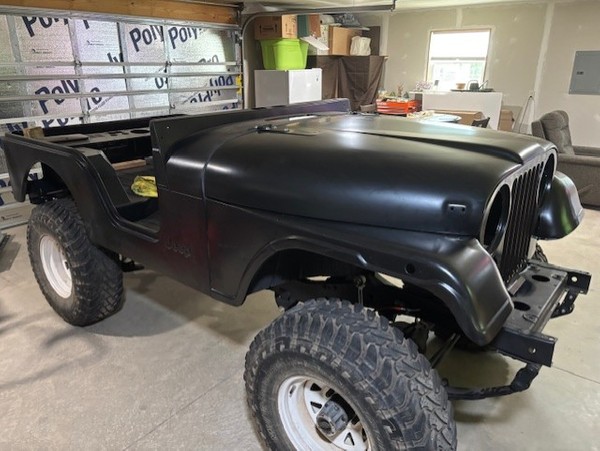

1976-1983 CJ5 (Late Model)

Dash pre-cut with all required holes.
Pre-installed transmission shifter opening for accuracy.
Factory-positioned body mounting holes with cage nuts relocated if necessary.
Straightened lips on the bottom of the tub for a factory-correct appearance.
Necessary firewall holes drilled based on the specific Jeep’s options.
Correct rear fuel fill location applied for proper fitment.
Parking brake bracket fabricated and installed to match original specifications.

Each CJ-5 Repli-Tub is precision-engineered to provide an OEM-level fit and finish, ensuring a hassle-free installation process for your restoration project. Get the right fit the first time—contact us today to order your CJ-5 Repli-Tub!

More Than Just a Replacement Body

Comprehensive Support for Jeep Enthusiasts

At Willys-Overland, we don’t just modify Jeep bodies—we live and breathe Jeep restoration. Our passion for quality craftsmanship means you get a product that stands the test of time. We also offer:

Expert support to guide you through every step of your rebuild, ensuring a smooth restoration experience.
Nationwide shipping with guaranteed safe delivery, so you can get your parts no matter where you are.
Local pickup in Scranton, Pennsylvania, giving you a chance to see our craftsmanship up close and ask any questions.
A full money-back guarantee if your tub doesn’t meet our quality standards, giving you peace of mind with every purchase.

Order Your CJ5 Repli-Tub Today - Call 570-955-9331

Don’t settle for an ill-fitting aftermarket tub that requires hours of modifications. Get a true bolt-on replacement with a Willys-Overland modified CJ5 Jeep body and restore your Scrambler the right way. Our precision modifications ensure that your installation is quick and hassle-free, allowing you to focus on enjoying your Jeep rather than struggling with mismatched parts. Contact us today to reserve yours at a competitive price!

Model	No Willys/Jeep Script	Willys/Jeep Script	Repli-Tub Optional Modifications
CJ5	$3,194	$3,845	Add $1,000

Reserve Your CJ5 Tub Today!

Added Durability with Raptor Liner Protection

A Tough, Textured Coating for Maximum Durability

For Jeep owners looking to add even more protection to their investment, we offer Raptor Liner coatings. This high-performance, urethane-based liner is designed to provide a rugged, textured finish that enhances durability while offering superior resistance to scratches, rust, and UV damage. Perfect for off-roaders and restorers alike, Raptor Liner helps safeguard your Jeep tub against the elements, keeping it looking great and performing well for years to come. Whether applied to the Scrambler tub, fenders, or interior surfaces, Raptor Liner delivers a tough, non-slip finish that stands up to harsh conditions while adding a custom look to your CJ5. Click here to learn more about our Raptor Liner

Essential Parts for Your Overland Journey

For overland enthusiasts looking to elevate every facet of their ride, we offer our exclusive parts collection. Each component is precision-engineered to deliver a rugged, custom finish that not only enhances durability but also withstands the toughest off-road conditions. Perfect for both restorers and modern adventurers alike, our parts protect your vehicle from wear, rust, and the elements, ensuring it looks great and performs brilliantly for years to come.

Whether installed on your chassis, body panels, or interior details, every piece is designed to combine timeless style with uncompromised strength—giving your ride that distinctive, custom edge it deserves. Click here to learn more about our parts collection
